Steel Clean Room Door

GMP clean room door belongs to clean room door but with GMP certificate meeting strict requirements in the pharmaceutical industry.

Share:

Steel Clean Room Door: Hygienic, Airtight Solutions for Controlled Environments

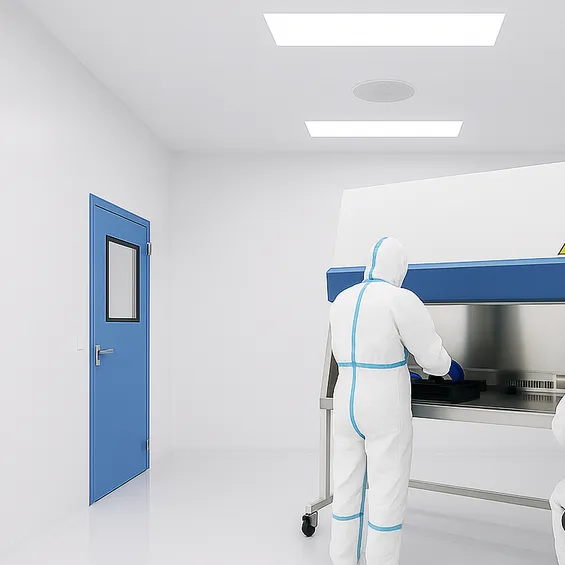

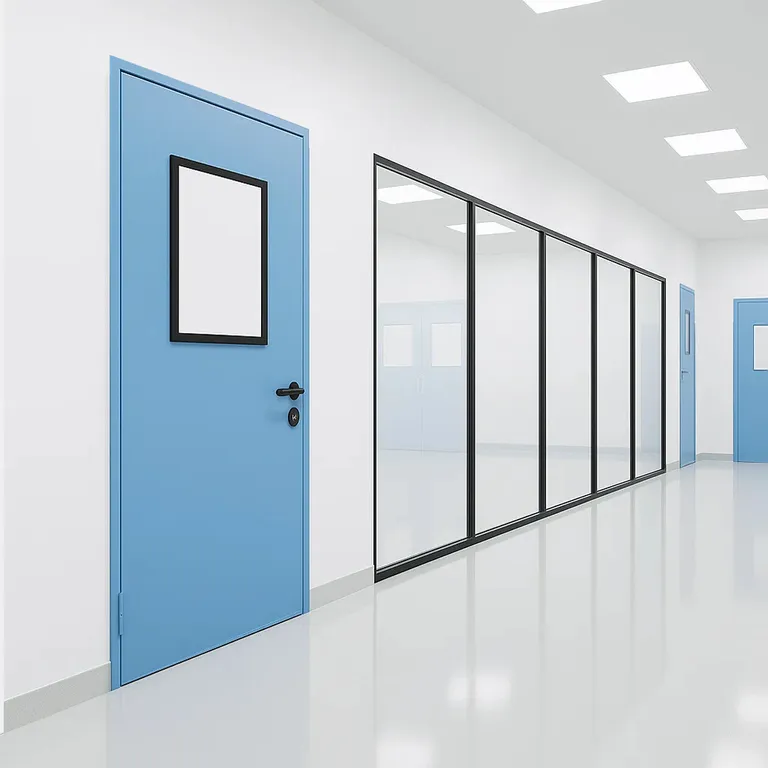

A steel clean room door is essential for maintaining hygiene, airtightness, and durability in controlled environments. Our steel clean room door features a seamless structure that does not carry bacteria and is easy to clean, making it ideal for hospitals, medical centers, clean rooms, and electronic factories. With embedded airtight materials, environmentally friendly galvanized steel paneling, and an optional interlock system, this door delivers reliable sealing and long-term performance in demanding facilities.

Steel Clean Room Door Advantages

1. Hygienic and Easy to Clean

The seamless structure prevents bacteria buildup and simplifies daily sanitization. A cover strip plate is installed on one side of the door, ensuring a clean overall appearance, while embedded airtight materials achieve effective soundproofing and sealing.

2. Environmentally Friendly Material

The door leaf is made of galvanized steel sheet with a polyester coating that resists dirt, discoloration, and corrosion. It also provides thermal insulation, sound insulation, and moisture protection.

3. Dust-Proof Bottom Seal

To prevent dust infiltration, we add a brush seal along the bottom of the door. Consequently, the clean zone stays protected during daily operation.

4. Adjustable and Long-Lasting Frame

The door frame width is adjustable for flexible installation, and the power beam is made of aluminum extrusion with a service life of over 1 million cycles. Hygienic doors are corrosion-resistant, easy to clean, and quick to install.

Steel Clean Room Door Features

1. Strong, Classic Appearance

The door combines strength with a clean, classic look that suits modern healthcare and industrial facilities.

2. Double-Glazed Glass Window

A double-glazed window allows staff to check conditions inside the room without opening the door and breaking pressure or cleanliness zones.

3. Durable Hardware

Stainless-steel chains and a robust lock system ensure long-term reliability under frequent use.

4. Full-Perimeter Rubber Sealing

The door is sealed with rubber tape around the entire frame, enhancing airtightness and sound insulation.

5. Interlock System Compatibility

You can operate this door with an interlock system. Because it prevents simultaneous opening between adjacent rooms, the system is much safer than ordinary types.

Why Choose This Steel Clean Room Door

Overall, with hygienic surfaces, airtight sealing, and durable hardware, this steel clean room door fits hospitals, medical centers, and electronic factories.

Need industrial, fire, or medical doors? Connect directly with our factory at Xinyi Door—[Click here to visit our website].

Follow our YouTube to see our latest project updates.

Contact us for more details of this product.

Product Specification

Product Information
Product Name Clean Room Door
Door Panel Material Galvanized Steel / Stainless Steel
Door Core Material Aluminum Honeycomb / Paper Honeycomb
Door Frame Material Galvanized Steel
Door Thickness 50mm / Customized Sizes Available
Window Tempered Glass
Standard Door Opening Size (mm) 800×2100 / 900×2100 / 1200×2100 / 1300×2100 / 1500×2100 / 1800×2100
Door Configuration Single Leaf / Double Leaf
Maximum Door Weight 50 kg
Opening Angle 0° – 170°
Lock L-Shape Lock
Seal Rubber Sealing Strip
Opening Type Swing Door / Automatic Door
Surface Treatment Baking Paint / Electrostatic Spraying
Package Carton / Wooden Box
MOQ and Lead Time 1 Set / 3 Days
